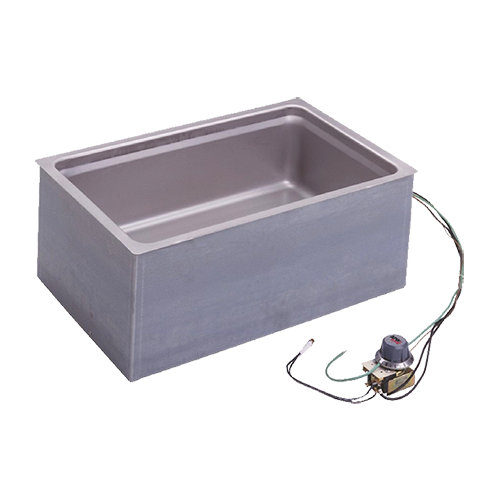

APW Wyott BM-80DS Insulated Bottom Mount 1 Well Hot Food Drop-In w/ Drain UL
APW Wyott Model: BM-80DS SKU: 144722
$765.00/each
| Similar Models Available: |
|---|
 New BM-30D |
| Calculate Estimated Cost | |
|
Only for customers within the 48 contiguous states..
| |
APW Wyott BM-80DS Specifications
APW Wyott BM-80 series Built-In Rectangular Food Warmers are designed for bottom mount installation and to hold heated foods at safe and fresh serving temperatures. APW Wyott BM-80 accommodates one 12” X 20” standard food pan or equivalent fractional inset pans; however, one-piece stainless steel top flange and heavy gauge, deep-drawn stainless steel warming pans are standard features on all models. Individual controls for each well and temperature-ready indicator lights are standard on all control types. The BM-80 series are fully insulated around all 4-sides and bottom for quicker pre-heat, faster recovery and energy savings.
Features
- Heavy-duty bottom mount, insulated rectangular drop-in hot food well is designed for installation on metal countertops.
- Available in Round Corners or Square Corner designs.
- Units available in a UL-recognized component construction with open wires and increase-decrease plate or complete UL-listed construction including electrical conduit, bezel and control box.
- Constructed of deep-drawn 20 ga. type 304 stainless steel.
- Units with drain are provided with stainless steel 1/2 NPT drain welded to bottom of pan and provided with removable screen.
- Entire heat assembly covered with inspection housing with layer of 1-1/2" thick compressed fiberglass insulation.
- Unit may be used wet or dry (wet use offers best results).
- Easy access to heating elements.
- Thermostatic control with 36” capillary (effective length 26”).
- Large indicating pilot light
- Multiple units can be installed in same table or counter.
- Electrical: 120 V 6.3 Amp, 120 V 10 Amp, 208/240V 5.8/6.7 Amp, or 208V 7.7 Amp configuration
- Inside dimensions: 12-3/16" wide x 20-1/8" long x 6-1/4" high
- Outside dimensions: 13-3/16" wide x 21-3/4" long x 11-1/2" high
- UL, CSA
Warranty
1 Year Parts & Labor
Manufacturer Information | |
| Brand | APW Wyott |
|---|---|
| Model | BM-80DS |
| Model | BM-80CD UL |
Power Information | |
| Power | 120/208 volts |
| Phases | 1 |
Item Dimensions | |
| Weight | 20.00 lb |
| Height | 21.94 in |
| Width | 13.69 in |
| Depth | 21.81 in |
Documents
UL Listed
This product is UL listed by the UL certification agency which means it meets safety and structural integrity standards for use in food service operations.
UL Classified Listed
This product is further certified by the UL certification agency for safety and structural integrity as well as enviromental and public health standards and complies with ANSI/NSF regulations.
CSA Certified
This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.
