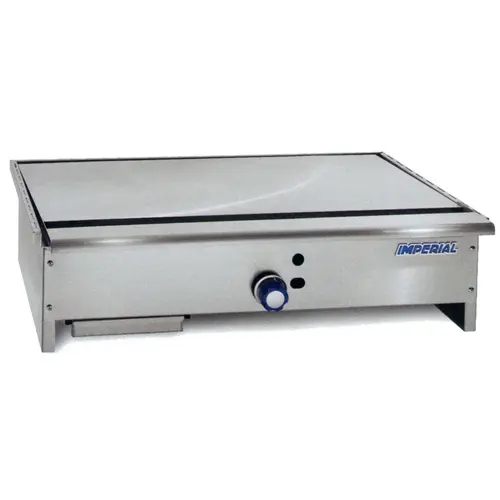

Imperial ITY-60 60in Stainless Natural Gas Teppan-Yaki Griddle w/ 1 Burner

This brand new item is shipped directly by manufacturer or supplier.

Item: 60" Stainless Steel Natural Gas Teppan-Yaki Griddle w/ 1 Burner.

Item Number: ITY-60

PLEASE NOTE THAT PICTURE IS FOR REFERENCE ONLY.

Available in natural gas or LP (choose at checkout)

This is a special order item. Please allow 2-3 weeks for delivery.

Description:

Cook Top Features

Griddle:

One 30,000 BTU/hr. (9 KW) round burner creates a “hot spot” in the center of the griddle - unique to this style of cooking.

Burner has an adjustable gas valve and continuous pilot for instant ignition.

Thick 3/4" (19) highly polished steel griddle plate for a wide variety of cooking applications.

Engineered with venting features that enable unit to be built into non-combustible cabinets or tables.

Full 24" (610) depth plate for more cooking surface.

3" (76) wide grease trough with one piece rolled stainless steel front for easy cleaning.

Large grease can with 1 gal. (3.8 L) capacity.

Griddle Features

Stainless steel front, sides, and landing ledge.

Welded stainless steel seams.

One year parts and labor warranty.

AGA and CGA design certified and NSF listed.

Standard Exterior Specifications

Front, ledge, grease trough and sides shall be stainless steel with welded and finished stainless steel seams. Control knobs shall be durable cast metal with a polished chrome finish.

Griddle Top Specifications

Griddle burner shall be 30,000 BTU/hr. (9 KW) round burner that shall be located at the center of the griddle plate to provide a “hot spot”. The unit shall be engineered so that temperature gradually decreases toward the griddle plate edges. Burner shall have one adjustable gas valve with one standing pilot for instant ignition.

Griddle plate shall be 3/4" (19) thick, highly polished plate with no breaking-in required. Griddle plate depth shall be 24" (610). Unit shall be engineered with venting feature that enables the unit to be built into non-combustible cabinets or tables. Grease trough shall be 3" (76) wide grease with a rolled stainless steel front for easy cleaning. Grease can shall have a large capacity and be removable.

Gas:

Manifold pressure is 5.0" W.C. for natural gas or 10.0" for propane gas. Manifold size 3/4" NPT. 3/4" pressure regulator supplied with equipment to be installed at time of connection.

Clearance:

For use only on non-combustible floors. Legs or casters are required for non-combustible floors. Provide 0" clearance from non-combustible surfaces and 8" (203) from combustible surfaces.
