Pitco SGC-S 35LB. Countertop Tube Fired Millivolt Gas Fryer

Call for more info on our Pitco line, or a custom fry bank.

Pitco Model: SGC-S SKU: 130612
Pitco SGC-S 35LB. Countertop Tube Fired Millivolt Gas Fryer
Web Price

$7,585.60/each

In Stock Pickup Not Available

Quantity:
Gas Options (Required)
Pitco Basket Option (Required)

Calculate Estimated Cost
Only for customers within the 48 contiguous states..
As low as $754/month
Add Recommended Items

Pitco SGC-S Specifications

Low Price Guarantee On All Pitco Products!

The Pitco name has become synonymous with quality and efficiency. They produce some of the highest quality, most efficient, and most dependable deep fryers on the market. They have many models that have been certified by the AGA and awarded the ENERGY STAR ®, and on top of saving people money by producing long lasting equipment, they help keep energy costs down. Each fryer is available with a solid state thermostat, or at an additional cost, a digital, computer, or multi-zone computer. We have a full line of products, and a Mix N' Match fry bank can be built to cater to your businesses specific needs. For more information on our full line, or a having a Mix N' Match fry bank built, please contact us directly.

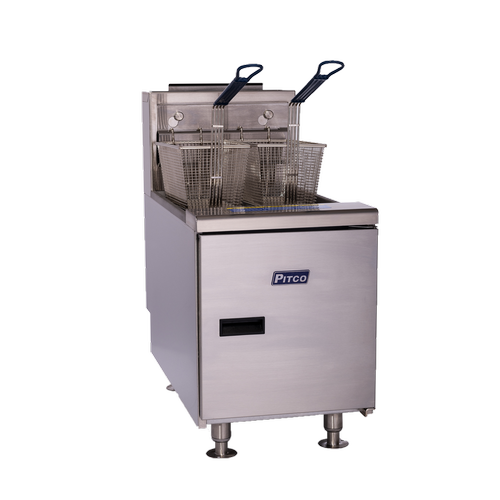

**The picture above is for reference only.**

MODEL: SGC

Standard Features

  • Standard #14 baskets
  • One nickel plated tube rack
  • One drain line clean-out rod
  • One drain extension
  • Fryer cleaner sample
  • Rear gas connection
  • Manual gas shut off
  • 1 1/4" (3.2 cm) full port drain valve
  • Built-in integrated flue deflector
  • Removable basket hanger for easy cleaning
  • Cabinet - Stainless steel front, door, and sides
  • Tank - stainless steel
  • One year parts and labor warranty
  • 4" Removable legs

    Construction

  • Welded tank with a super smooth machine peened finish ensures easy cleaning.
  • Long lasting, high temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency.
  • Standing pilot light design provides a ready flame when heat is required.
  • Heavy duty 3/16" (.48 cm) door hinge.

    Controls

  • Millivolt thermostat maintains selected temperature automatically between 200°F (93°C) and 400°F (190°C-CE).
  • Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve.
  • Gas control valve prevents gas flow to the main burner until pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
  • emperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.
  • New Solstice burner/baffle design: increases cooking production, lowers flue temperature, improves working environment, generates more production per BTU (compared to previous models).

    Operation / Approvals:

  • Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C)).
  • Front 1-1/4”" (3.2cm) NPT full port drain, for quick draining.
  • NSF listed
  • CSA / AGA approved
  • MEA approved
  • Attention CA Residents
    Pitco

    Manufacturer Information

    Brand Pitco
    Model SGC-S

    Power Information

    Uses Gas? Yes
    BTU's 75,000

    Item Dimensions

    Height 30.28 in
    Width 14.75 in
    Depth 29.00 in

    Documents

    NSF Listed

    NSF Listed

    This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.

    CSA Approved

    CSA Certified

    This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.

    AGA Design Certification

    AGA Design Certification

    This product has been certified by the American Gas Association (AGA) for design and performance.
