Star 8148RCBB Ultra-Max 48" Wide Countertop Radiant Gas Charbroiler

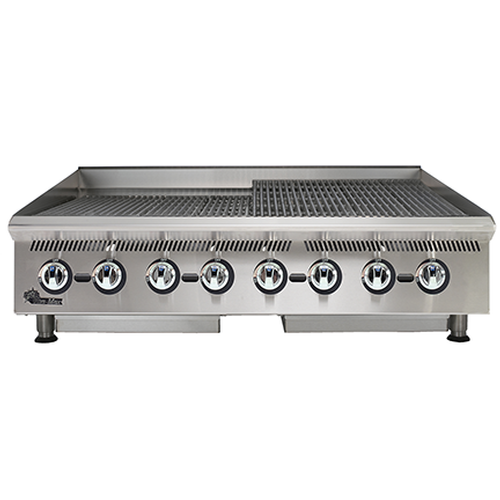

Please Note: The above picture is for reference only.

The Ultra-Max® radiant and lava rock charbroilers are constructed in the U.S.A. with a corrosion-resistant stainless steel body. The charbroilers will either use lava rocks or heavy- duty radiants to transfer heat to product. Grates are adjustable per section to be inclined or flat. The units feature cast iron burners which produce 20,000 BTUs per six 6 inches of width and have adjustable valves and a standing pilot. Units will be shipped being set up for Natural Gas, and will include field conversion kit for LP gas. Standard gas connection is 3/4-inch N.P.T. For lava rock models, a five 5 pound bag of lava rocks will be provided for each twelve 12 inches of width.

Ultra-Max 8148RCBB Lava Rock Gas Charbroiler – 48" Wide

Features:

• 48"L x 35-1/5"D x 18"H
• Steel alloy radiants
• High-capacity grates for maximum capacity
• 20,000 BTUs per six [6] inch (152 mm) of width with separate control of each section for maximum heat and control
• Welded steel frame with stainless steel exterior
• Cast iron burners for increased durability
• Five [5] inch ( 127 mm) tapered splash guard and large capacity water pan for easy cleanup
• Cool-to-the-touch stainless steel bull nose protects knobs and keeps work area comfortable
• Heavy-duty metal knobs look great and are designed to last
• Grease trough
• 4" legs
• 160,000 BTU
• cULus
• UL EPH Classified
• Made in USA

Warranty

• 2 year parts and labor
• 180 day warranty on cast iron grates, burners, & burner shields
