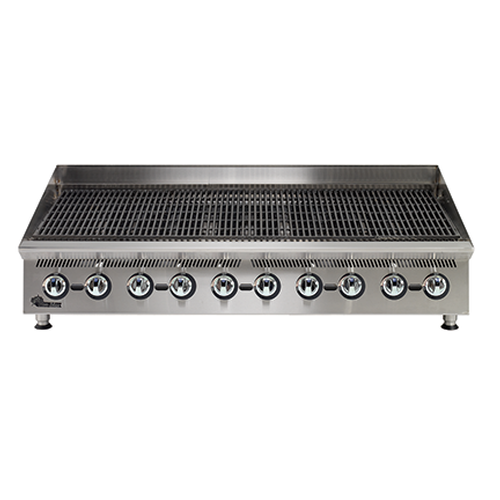

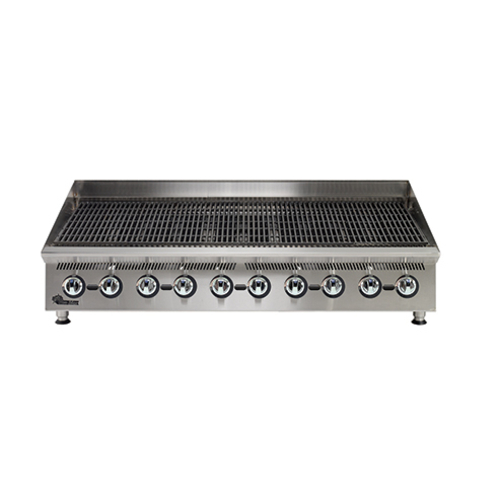

Star 8160RCBB Star Ultra-Max 60in Radiant Gas Char-Broiler

The Ultra-Max® radiant and lava rock charbroilers are constructed in the U.S.A. with a corrosion-resistant stainless steel body. The charbroilers will either use lava rocks or heavy- duty radiants to transfer heat to product. Grates are adjustable per section to be enclined or flat. The units feature cast iron burners which produce 20,000 BTUs per six 6 inches of width and have adjustable valves and a standing pilot. Units will be shipped being set up for Natural Gas, and will include field conversion kit for LP gas. Standard gas connection is 3/4-inch N.P.T. For lava rock models, a five 5 pound bag of lava rocks will be provided for each twelve 12 inches of width.

Ultra-Max® 8160RCBB Lava Rock Natural/LP Gas Charbroiler – 60" Wide

Features:

• 60"L, 35-1/5"D, 18"H
• Steel radiants
• Adjustable manual controls every 6"
• Cast iron grates can be adjusted independently in 6-inch sections to be flat or inclined
• 20,000 BTUs per six( 6) inch (152 mm) of width with separate control of each section for maximum heat and control
• High-capacity grates for maximum capacity
• 30% more cooking space with our high capacity design to meet all your back-of-the-house broiling needs
• Five (5) inch ( 127 mm) tapered splash guard and large capacity water pan for easy cleanup
• Cast iron burners for increased durability
• Cool-to-the-touch stainless steel bull nose protects knobs and keeps work area comfortable
• Heavy-duty metal knobs look great and are designed to last
• Large capacity stainless steel water pan for easy clean up
• Splash guard & grease trough included

Warranty

• 2 year parts and labor
• 180 day warranty on cast iron grates, burners, & burner sheilds
