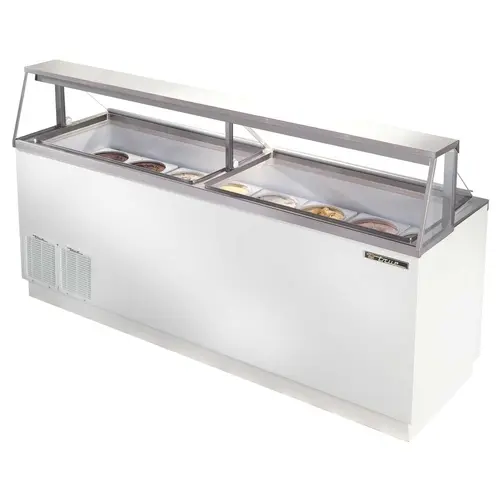

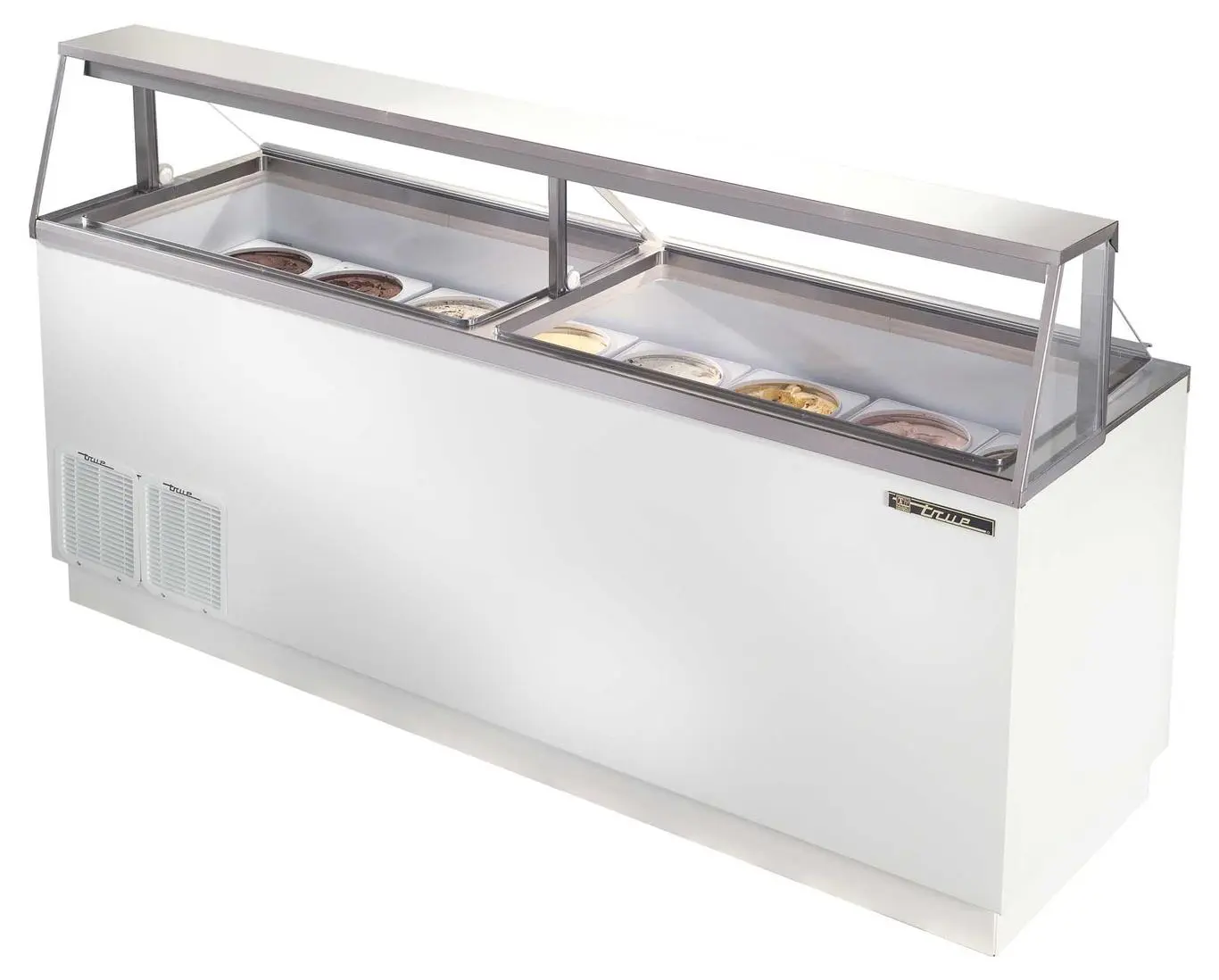

True TDC-87 16 Flavor Ice Cream Dipping Cabinet Holds 28 Cans

This brand new item is shipped directly by manufacturer or supplier with warranty.

Item: 27.9 cu.ft, Ice Cream Dipping Cabinet

Item Number: TDC-87

Description:

Dipping Cabinet, -10°F to 8°F, 27.9 cu. ft., white vinyl clad ext'r, white pwd-coat steel int'r, s/s canopy w/lighting, (16) can skirts, holds (28) 3-gal. cans, (8) wire racks, mag. frost shields, night covers, NSF-7, reverse cond., 3/4 HP, 115/60/1

introduces a complete line of new Dipping Cabinets designed to provide the user maximum functional reliability in attractive merchandiser to brilliantly display and serve ice cream products.

’s visual dipping cabinets are uniquely designed to provide the user maximum functional reliability in an attractive merchandiser to brilliantly display and serve ice cream product. Cold wall refrigeration system.

Cold wall refrigeration system. Maintains -10°F to +8°F (-23.3°C to -13.3°C).

Exclusive, reverse condensing fan motor reduces maintenance costs and optimizes cabinet performance.

Heavy-duty, PVC coated wire can support racks. Positions the open ice cream containers on top level to optimum service height. Lower level provides for extra can storage.

Designed to hold sixteen (16) 91/2" (242mm) diameter, 3 gallon (12 L) ice cream containers in display area and twelve (12) on floor beneath support racks.

Sixteen (16) removable, molded plastic can skirts for 91/2" (242 mm) diameter, 3 gallon (12 L) cans. Firmly holds cans in place and provides attractive, neat appearance..

White, 6" (153 mm) wide, NSF approved, removable magnetic frost shields. Provides for easy clean up and removal of ice build-up on cabinet walls..

Four (4) white plastic night covers for case opening.

Entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation. Safety shielded fluorescent interior lighting for longer, brighter, shadow-free illumination.

DESIGN

• ’s visual dipping cabinets are uniquely designed to provide the user maximum functional reliability in an attractive merchandiser to brilliantly display and serve ice cream product.

REFRIGERATION SYSTEM

• Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) R404A refrigerant.

• Cold wall refrigeration system. Maintains -10°F to +8°F (-23.3°C to -13.3°C).

• Exclusive, reverse condensing fan motor(s) reduces maintenance costs and optimizes cabinet performance.

• Condensing unit located behind rear grill on right side; slides out for easy maintenance.

• Manual defrost system; drain tube with hose connector conveniently located behind rear access panel.

CABINET CONSTRUCTION

• Exterior - non-peel or chip white laminated vinyl clad steel; durable and permanent.

• 300 series stainless steel top with raised rim protects cabinet and helps minimize spillage to keep cabinet interior clean.

• Interior - high quality white enamel powder coat fi nish on galvanized steel.

• Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.

• Heavy duty, galvanized steel base rail with white enamel powder coat finish.

CANOPY

• Stainless steel frame with tempered, hard coated, “Low-E”, single pane thermal glass viewing window; reduces solar heat gain and minimizes condensation.

• Hinged, transparent acrylic dipping compartment service lid with full length handle. Top and back wiper gaskets for improved seal.

SUPPORT RACKS

• Eight (8) heavy-duty, PVC coated wire can support racks 7" x 20½" (178 mm x 521 mm). Positions the open ice cream containers on top level to optimum service height.

• Each rack designed to hold two (2) 91/2" (242 mm) diameter, 3 gallon (12 L) ice cream containers.

Lower level beneath support racks provides extra can storage of twelve (12) 9½" (242mm) diameter, 3 gallon (12L) ice cream containers.

LIGHTING

• Safety shielded, fluorescent interior canopy lighting for brighter, shadow free illumination. Independent on/off switch.

• Cabinet lighting utilizes electronic ballast and T-8 bulbs for brighter illumination, longer bulb life and increased energy efficiency.

MODEL FEATURES

• White, 6" (153 mm) wide, NSF approved, removable magnetic frost shields. Provides for easy clean up and removal of ice build-up on cabinet walls.

• Four (4) white plastic night cover for case opening.

Sixteen (16) removable, molded plastic can skirts for 91/2" (242 mm) diameter, 3 gallon (12 L) cans. Firmly holds cans in place and provides attractive, neat appearance. Firmly holds cans in place and provides attractive, neat appearance.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included.

RECOMMENDED OPERATION CONDITIONS

• TDC models are designed to operate in an air conditioned environment where temperatures do not exceed 75°F and 55% relative humidity.

• Units should be installed away from direct sunlight, rapid air movement and extreme temperature changes.
