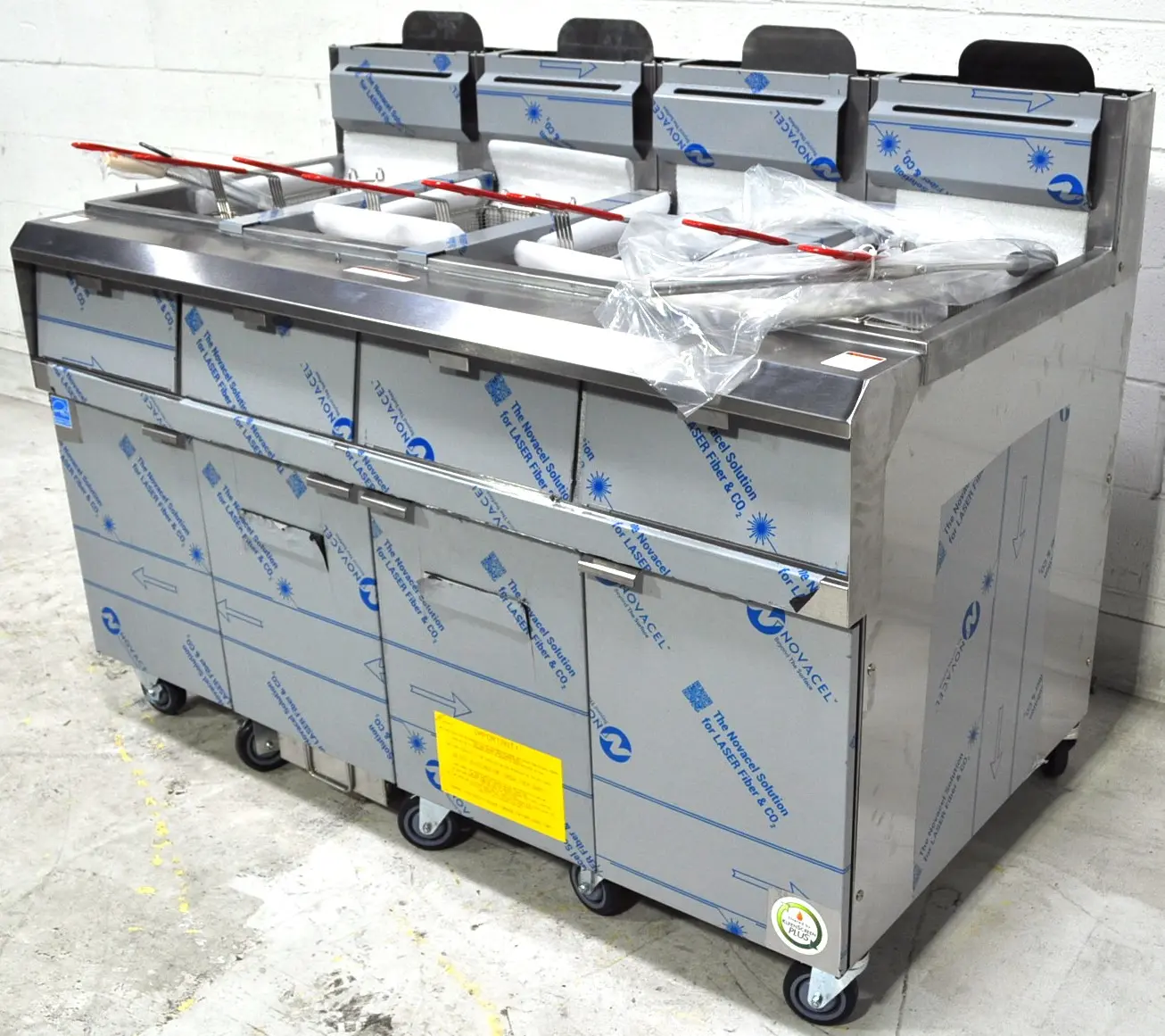

Vulcan 4VHG50AF-1 50lb (4) Fryer Battery w/ Filtration System Gas
Vulcan 4VHG50AF-1 / Gas 50lb Fryer
Vulcan Model: 4VHG50AF-1 SKU: 246031
Fast Shipping
$35,000.00
In Stock
Pickup Available
1 ready to ship.
To place a larger order call 404-752-6715
| Similar Models Available: |
|---|
 New 1VHG50AF |
Fast ShippingCalculate Estimated Cost |
|
|
Ships within 1 business day. Carrier transit times may vary. Only for customers within the 48 contiguous states.. | |
Store pickup availableThis item may be picked up at our store in Norcross, GA.08:30AM - 05:30PM EST (M-F) |
Vulcan 4VHG50AF-1 Specifications
Low Price Guarantee On All Vulcan Products!
Built-in filter system, Vulcan Model 4VHG50AF-1. Filter system accommodates all four cabinets. Filter vessel constructed of 16-gauge stainless steel. Filter pan weighs 17.0 lbs. 1?3 H.P. motor/pump circulates hot frying compound at the rate of 8 gallons per minute (60 Hz), activated by a one touch push button switch. System provided standard with stainless steel mesh filter screen. Optional KleenScreen PLUS® envelopes filter out particulate down to 0.5 microns. Dry fire safety prevention sequence comes standard on all VHG50 models. Standard equipment comes on casters, has a tank brush and clean-out rod. Hands free oil return line connection. Drain valve interlock switch turns fryer's burners off when drain valve is opened. Requires 120 volt, 50/60 Hz, 1 phase power supply.
1VHG50A:
- Solid state knob control with digital character display behind the access panel. Accurate temperature control 150 to 390°F. Electronic ignition. Digital temperatures: Fahrenheit or Celsius. Three melt modes
Features:
- Filter system accommodates maximum of four fryer cabinets
- Drain valve interlock switch – turns off gas burners automatically when draining oil
- Input rate is 75,000 BTU/hr. for natural gas and 70,000 BTU/hr. for propane
- 4 Frytank Covers Provided
- 6" casters
- 16 gauge stainless steel filter pan; 75 lbs. frying compound capacity
- Stainless steel filter mesh screen filters from 2 sides; filter area = 270 square inches
- 1/3 H.P. motor and pump circulates frying compound at a rate of 8.0 gallons per minute (60 Hz)
- One touch push button switch to engage pump and motor
- Tank brush and clean-out rod
- 120 volts, 60 Hz, 1 phase (NEMA 5-15P)
- Dry fire safety prevention sequence
- One year limited parts and labor warranty
- 10 year fry tank limited warranty
- 6' high temperature discard hose
- NSF
One Year Limited Parts and Labor Warranty Only Valid After Instalment is inspected by Vulcan Representative
Manufacturer Information | |
| Brand | Vulcan |
|---|---|
| Model | 4VHG50AF-1 |
Power Information | |
| Power | 120v volts |
| Phases | 1 |
| Uses Gas? | Yes (NAT) |
| BTU's | 300,000 |
Item Dimensions | |
| Weight | 871.00 lbs. |
| Width | 62.50 in. |
| Depth | 36.00 in. |
| Height | 47.75 in. |
NSF Listed
This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.
CSA Certified
This product has been certified by the Canadian Standards Association (CSA) for its use type. Products with more than one power type, such as electric and gas features, will have multiple CSA certifications.
Energy Star Certified
This product has been certified by a joint agency program supported by Environmental Protection Agency (EPA) and the U.S. Department of Energy (DOE) for energy efficiency.
