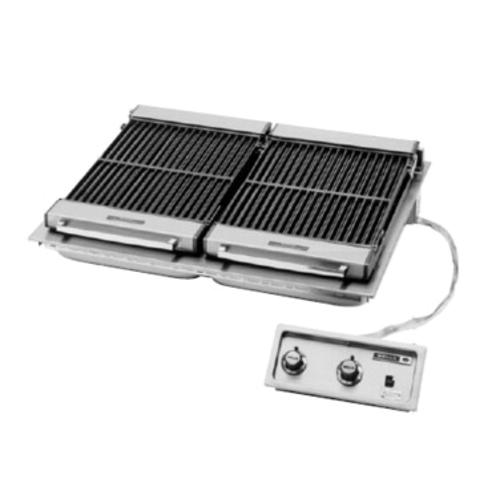

Wells B-506 Built-In 32" x 20" Electric Charbroiler
Wells Model: B-506 SKU: 136189
Free Shipping
Web Price
$9,430.00/each
Call 404-752-6715
In Stock
Pickup Not Available
| Similar Models Available: |
|---|
 New B-50 |
 New B-406 |
Free Shippingon Star/Toastmaster/Wells Single Piece Free Freight products |
|
|
Only for customers within the 48 contiguous states..
| |
Wells B-506 Specifications
Low Price Guarantee On All Wells Products!
**Please Note: This item is designed and approved for installation into metal
countertops ONLY.
Description: This is a built-in electric charbroiler with a 32" x 20" cooking area.
MODEL: B-506
STANDARD FEATURES:
Self-cleaning elements are positioned between the broiler grate ribs to guard against
direct food contact and spatula abrasion. The elements also provide dual heating action
(conductive and radiant).
Temperature is regulated by two infinite controls with a positive-off position and signal
lights to indicate a power-on condition.
Each element frame assembly has a spring-loaded support rod to secure element
when in a raised position.
Lift-out, drawn drip pans with handles and removable cast iron grates allow fast and easy cleaning.
Each individual control regulates one half of the grid surface area for cooking versatility.
Controls are recessed in a one-piece, drawn, stainless steel panel to help prevent accidental temperature changes.
A terminal block is provided for field connection to the main power supply.
Each unit is provided with a grate scraper/brush.
The B-506 Broiler is Underwriters Laboratories, Inc. RECOGNIZED and meets NSF International standards.
A one-year warranty against defects covers parts and labor.
Attention CA Residents
Description: This is a built-in electric charbroiler with a 32" x 20" cooking area.
MODEL: B-506
STANDARD FEATURES:
Manufacturer Information | |
| Brand | Wells |
|---|---|
| Model | B-506 |
Power Information | |
| Power | 208/240 volts |
| Phases | 3 |
| Watts | 10800 |
Item Dimensions | |
| Weight | 137.00 lb |
| Height | 6.00 in |
| Width | 36.50 in |
| Depth | 29.50 in |
Documents
NSF Listed
This product meets National Sanitation Foundation (NSF) standards for public safety & environmental factors with regards to design, manufacture, operation, and labeling.
Made in the USA
This product was manufactured in the United States of America.
